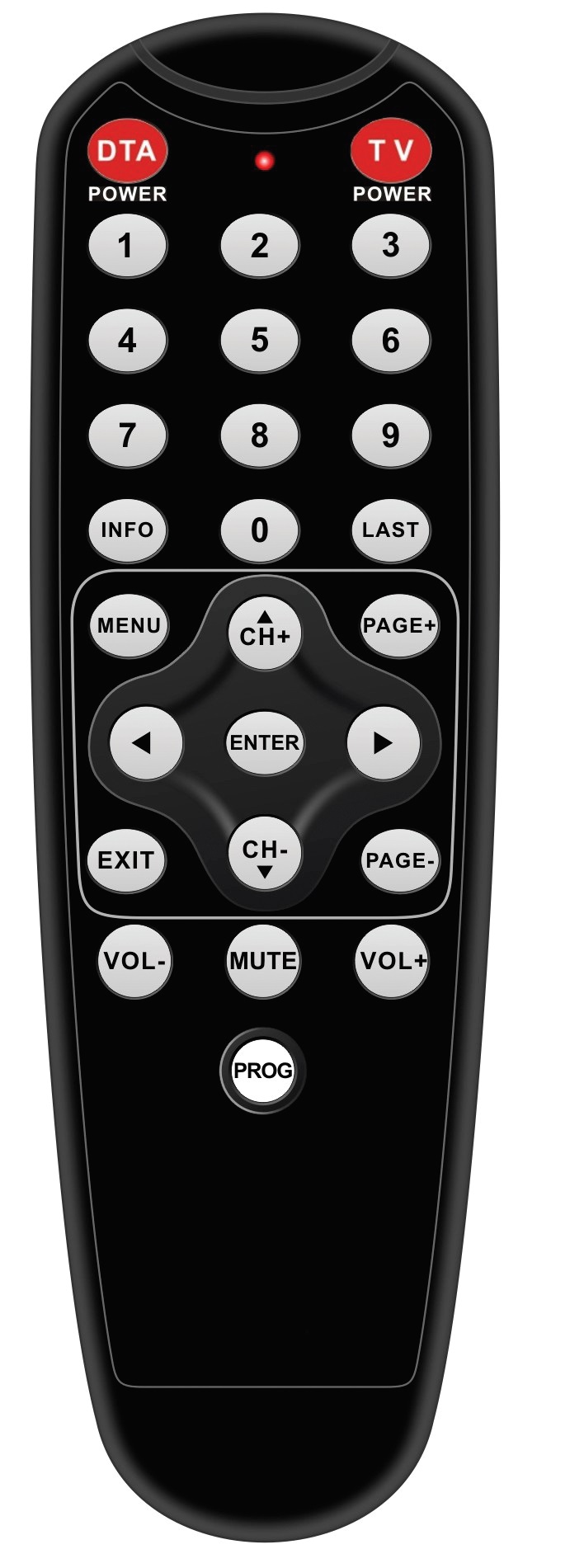

Cisco DTA

Programming Codes:

Select the manufacturer of your device from the list. The codes will appear below the list boxes.

Not all manufacturer brands listed may be compatible with this remote.
TV:




Program the Remote to Control Your TV

  1. Turn on your TV.
  2. Press and hold the PROG key for three seconds or until the LED turns on then press the TV key. The LED will blink once and stay on.
  3. Find the four digit device code for your TV brand. Press and release the four numeric keys.
  4. If the device code is valid, the LED will blink two times and the device code will be retained. If the device code is invalid, the LED will blink three times - either input another code or cancel the remote programming by pressing the TV key.

Automatic Code Search

If the device code for your TV brand can't be found in the list above, you can access the device code database using Code Search.

  1. Turn the TV on manually.
  2. Press and hold the PROG key for three seconds or until the LED turns on.
  3. Press the CH+ key to enter the automatic code search mode. The remote will transmit the TV power code every 1.5 seconds and the LED will blink at the same time. When your TV turns off, the remote has found a valid code.
  4. Press the TV key to store the code and exit search mode.

Pairing Between Remote Control and Target Device (DTA)

Your remote control can be paired with the DTA, allowing you to place the DTA out of the line of sight (e.g. behind your TV).

  1. Turn on the target (DTA) device.
  2. Press and hold the PROG key for three seconds or until the LED turns on, then press the INFO key.
  3. The LED on the remote control will blink slowly to indicate that the device is in pairing mode.
  4. The DTA will prompt the user via a message on the TV to enter a unique four digit number.
  5. If the four digits entered are correct, the target (DTA) will prompt the user that the pairing was successful.
  6. If the four digits entered are incorrect, the target (DTA) will prompt the user that the pairing has failed and to try again until the correct code is entered.

Unpairing the DTA

Once paired with the target (DTA), the remote can be unpaired using the following sequence:

  1. Press and hold the PROG key for three seconds or until the LED turns on.
  2. Press 9 8 7, the LED will blink two times quickly to show the procedure is successful.

Switching Between DTA and TV Mode for Volume/Mute Control

To control DTA Volume and Mute, use the following steps:

  1. Press and hold the PROG key for three seconds or until the LED turns on.
  2. Press the VOL- key.
    To control TV Volume and Mute, use the following steps:
    1. Press and hold the PROG key for three seconds or until the LED turns on.
    2. Press the VOL+ key.
Default state: the remote is initially assigned to control DTA Volume and Mute.

Troubleshooting

If there is no response when you press any key on the remote control, please check the following items before calling for service.

Check the Batteries.

Are the batteries insterted correctly? Are the batteries drained? You may have to replace the batteries with new ones.





Check the DTA.

Is the DTA connected to the input of the TV? Is the DTA connected to the cable wall outlet? Is the DTA power cord connected to the power outlet?





Check the TV.

Is the TV power cord connected to the power outlet? Is the TV tuned to the correct channel to work with the DTA?





Check the TV Code List.

Is your TV's brand included in the code list? Sometimes there is more than one code for a TV's brand; try the other codes listed.

If you can't find your TV's brand in the list or you can't program your remote manually, you should run the Automatic Code Search.
