Download Manual

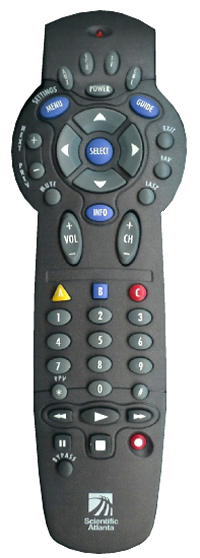

AT2000

Programming Codes:

Select the manufacturer of your device from the list. The codes will appear below the list boxes.

Not all manufacturer brands listed may be compatible with this remote.
TV:


DVD Player:



  Click here to see additional devices.

Digital Receiver (Cable Box):


VCR:



Setting Up Your Remote Control

  1. To set up a mode key, find the four-digit code for your device's brand in the list of programming codes.
  2. Turn on your device.
  3. Press and hold the SELECT key. As you hold down the SELECT key, press and hold the mode key for that device until the LED blinks twice.
  4. Enter the four-digit setup code.
  5. Point the remote control toward the device.
  6. Press POWER, PLAY, or CH+ to test the device.
  7. Did the device operate correctly? If yes, press POWER, if necessary, to turn on the device. Press the VOL+, PLAY, or CH+ key to verify that you programmed the best code for your device. If no, repeat steps 1 through 6 using a different setup code.
    Note: If all of the codes listed for your brand of device fail to operate your device properly, see the Searching for Codes section.
  8. Repeat steps 1 through 6 for each mode key.
  9. Write down your codes for future reference.

Searching for Codes

  1. Turn on the device.
  2. Press and hold the SELECT key. As you hold down the SELECT key, press the mode key for that device and hold it down until the LED blinks twice.
  3. Press 9-9-1.
  4. Point the remote control toward the device, and press POWER, PLAY, or CH+ to test this device code.
  5. Did the device operate correctly? If yes, go to step 6. If no, press the mode key again, then press POWER, PLAY, or CH+. Continue to toggle the mode and other keys to search for the proper code until the device is controlled.
  6. With the device on, try other device keys (0, 1, 2, 3, VOL+, REW) to check the code. If the remote control keys do not control the device, repeat the process from step 5.
  7. To set the code, press SELECT.

To Identify Programmed Codes

  1. Press and hold the SELECT key. As you hold down the SELECT key, press the mode key for that device and hold it down until the LED blinks twice.
  2. Press 9-9-0.
  3. Press 1, then count the number of times the LED blinks. This number indicates the first digit in the code. For example, four blinks indicates the first digit in the code is 4. If the LED does not blink, the digit is 0.
  4. Press 2, then count the LED blinks. The number of blinks indicates the second digit in the code.
  5. Press 3, then count the LED blinks. The number of blinks indicates the third digit in the code.
  6. Press 4, then count the LED blinks. The number of blinks indicates the fourth digit in the code.
  7. Write down your four-digit code for future reference.

To Program for Volume Control

  1. Turn on the device.
  2. Press and hold the SELECT key. As you hold down the SELECT key, press the mode for the device that you are programming and hold it down until the LED blinks twice.
  3. Press 9-9-3.
  4. Press the mode key for the device that you want to use to control the volume.
  5. Point the remote control toward the device you have chosen and adjust the volume to confirm operation. Note: To unlock the volume to each mode, repeat steps 1 through 6, except at step 2, press CBL and at step 5, press VOL-.

To Change the Mode Key

  1. Press and hold the SELECT key. As you hold down the SELECT key, press the CBL mode key and hold it down until the LED blinks twice.
  2. Press 9-9-2.
  3. Press the mode key for the type of device you want to control.
  4. Press the mode key that you want to use for this device.
  5. To set up the mode key, follow all of the steps in the Setting Up Your Remote Control procedure for your brand of equipment.
  6. Write down a record of the changes.

To Program VCR Keys for CBL Mode

  1. Turn on the VCR.
  2. Press and hold the SELECT key. As you hold down the SELECT key, press the CBL mode key and hold it down until the LED blinks twice.
  3. Press 9-9-9.
  4. Press the VCR mode key.
  5. Insert a tape into your VCR and test the VCR function keys.
    Note: To set the remote control back to the default setting, repeat steps 1 through 4; however, at step 4, press the CBL mode key. At step 5, test the VOD functions.

To Change the Power Control

  1. Press and hold the SELECT key. As you hold down the SELECT key, press the CBL mode key and hold it down until the LED blinks twice.
  2. Press 9-9-8.
  3. Choose one of the following options to select which devices you want to turn on and off at the same time. For TV and CBL, press the TV mode key. For TV, CBL, and VCR, press the VCR mode key. For TV, CBL, and AUX, press the AUX mode key. For all devices, press the CBL mode key. To return to the default settings (each mode key controlled separately), press POWER.
  4. Point the remote control toward the devices, and then press and hold POWER to confirm operation. The power to the devices may take a few seconds to turn on or off.
    Note: You can still control the power of a specific device by pressing the mode key and then pressing POWER within three seconds.

About Cable Codes

  1. Before you program your CBL mode key with any of the codes, make sure that your remote control is not locked by performing the following steps. Press and hold the SELECT key. As you hold down the SELECT key, press the CBL mode key and hold it down also until the LED blinks twice.
  2. Press 9-9-6.
  3. Press CH -.
