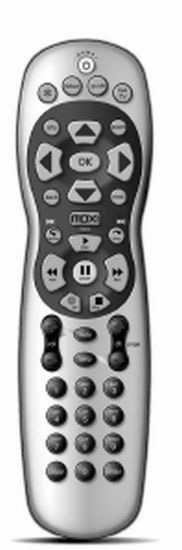

Moxi MC3

Programming Codes:

Select the manufacturer of your device from the list. The codes will appear below the list boxes.

Not all manufacturer brands listed may be compatible with this remote.
TV:



Programming the TV with Codes

  1. Turn on the TV or receiver you want the remote to control.
  2. On the Moxi remote, press and hold the MOXI and OK buttons simultaneously until the LED at the top of the remote blinks twice.
  3. Using the number buttons on the remote, enter one of the codes for your device from the reference tables (on the opposite side of this pamphlet). When you enter the correct code, the LED blinks twice. If it blinks once, the code was invalid and you must try again.
  4. Press the Power or Mute button on the remote. If the TV or receiver does not respond, repeat steps 2 and 3 using another listed code. Repeat until successful, or use the Programming by Search procedure.
  5. To reset the remote to the original factory setting, enter code 9 9 9 9, and then press OK in step 3.

Programming by Search

  1. If your TV or receiver is not listed or does not respond to the codes listed, try programming by search. Programming by search allows the remote to cycle through codes to find one that works with your TV or receiver. Turn on the TV or receiver you want the remote to control.
  2. On the Moxi remote, press and hold the MOXI and OK buttons simultaneously until the LED at the top of the remote blinks twice.
  3. Using the number buttons on the remote, press 9 9 1 0 for TV, or 9 9 1 1 for audio receiver. The LED light blinks twice.
  4. Press the Mute button. If this mutes the device, go to step 5. If this does not mute the device, press the up arrow to advance to the next code, and then press Mute again. Repeat until the device responds.
  5. Press OK to set the current code and finish.

Additional Programming Features

To view which device you have programmed for a specific remote control key:

  1. Press the Moxi button and OK buttons.
  2. Press the Info button, and then press any one of the four programmable keys (such as, vol+/-, mute, or power).
    • The LED light for the power button blinks back the code, blinking the number of times equal to the first digit of the code, then pausing before blinking the number of times equal to the second digit in the code, and so forth. For the digit 0, the LED blinks rapidly several times.
    • The default settings for the vol+/- and mute buttons control the TV when there is not an audio device programmed. When an audio device is programmed, then the default settings for the vol +/- and mute buttons are controlled through that device.

To reset the Moxi remote to the original factory settings:

Press the Moxi plus OK buttons simultaneously and hold until the LED light blinks twice, and then press clear, clear, clear.

NOTE: Be aware that this will erase all settings, previously recorded programs and any future recordings scheduled on the box.
