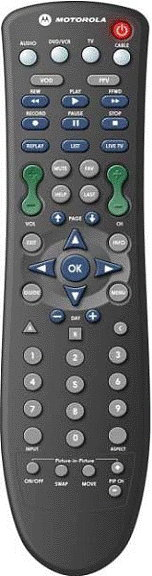

DRC800 4 in 1

Programming Codes:

Select a manufacturer from the list to view the three-digit programming code for your device.

Not all manufacturer brands listed may be compatible with this remote.
TV:


DVD Player:





  Additional devices:

Spectrum Receiver (Cable Box):


VCR:



Programming Device Control

  1. Find the programming code for your device.
  2. Press and hold a device key (AUDIO, DVD/VCR or TV) for at least six seconds. The LEDs for each device key light up, and then the LED for the device you selected remains on.
  3. Enter the four-digit code. The device key LED turns off briefly after each key press. You have 10 seconds to press each digit. Otherwise, the remote "times out" and you'll need to start over.

If successful, the LED will blink three times. You can now test the remote by pressing POWER. If your device turns off, you've used the right programming code. If your device doesn't respond, repeat steps 2 and 3 using the next code listed for your device or try searching for a device code.

Searching for Codes

  1. Press and hold a device mode key (AUDIO, DVD/VCR or TV) for at least six seconds. The LED for each device key lights up, and then the key for the device you selected remains on.
  2. Press a function key (such as POWER or Mute). The following function keys are valid for searching: Play, CH + and Stop. The POWER key is recommended. The device key's LED blinks three times and then turns off.
  3. Press the UP ARROW. The remote will send the IR command for the function you pressed in Step 2.
  4. If the device performed the function you pressed, press OK. The remote will now control the device you selected in Step 1.
  5. If the device didn't respond, repeat step 3. Press DOWN ARROW to retry the previous code.

Checking Codes

  1. Press and hold a device mode key (AUDIO, DVD/VCR or TV) for at least six seconds. The LEDs for each device key light up, and then the key for the device you selected remains on.
  2. Enter 9 9 0 to tell the remote you are verifying the device code. The LED blinks twice.
  3. Press 1, then count the LED blinks and write down the number. If the LED doesn't blink, the number is 0. This is the first digit of the device code. Press 2, 3, and 4 to obtain all four digits.

Changing Volume Lock

  1. Using your remote, press and hold the corresponding device mode key (TV, AUDIO, DVD/VCR or Cable) for at least six seconds. The LED for each device key lights up and then the key for the device you selected remains on.
  2. Press Volume +. The device key LED blinks three times, indicating it has locked the volume control to the device you selected. The AUDIO device key always controls its own volume.

Unlocking Volume Control

  1. Press and hold the corresponding device mode key (TV, AUDIO, DVD/VCR or Cable) for at least six seconds. The LED for each device key lights up and then the key for the device you selected remains on.
  2. Press Volume -. The device key LED blinks three times, indicating it has unlocked the volume control for all devices.

Reassigning Device Keys

  1. Press and hold the corresponding device mode key (TV, AUDIO, DVD/VCR or Cable) for at least six seconds. The LED for each device key lights up and then the key for the device you selected remains on.
  2. Enter 9 9 2.
  3. Press the device mode key you want to reassign (for example, AUDIO). That mode key LED blinks three times and turns off, indicating that it has been reassigned.

Assigning a Key back to Its Original Device Type

  1. Press and hold the device mode key (TV, AUDIO, DVD/VCR or Cable) you want to reset to its original type (for example, AUDIO) for at least six seconds. The LED for each device key lights up and then the key for the device you selected remains on.
  2. Enter 9 9 2. The mode key's LED blinks three times and turns off.
  3. Press the device mode key you selected in Step 1 again. The mode key LED blinks three times and turns off.
  4. Program the restored mode key to control a device. See "Programming Device Control" for futher instruction.
